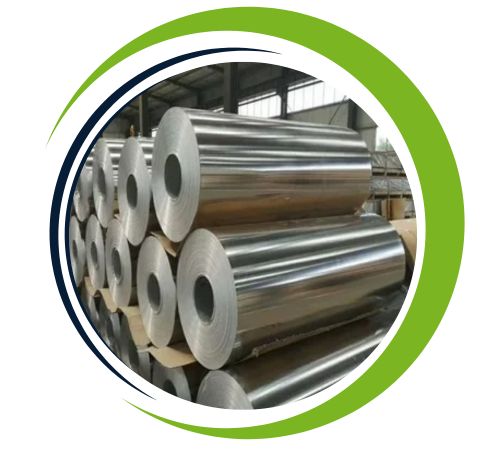

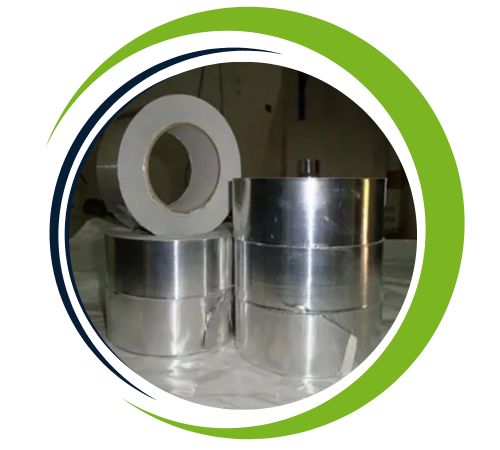

Based in Delhi, India, Daksh Sheets and Plates is a leading producer and supplier of stainless steel 904L coils and slitting coils. Our 904L grade coils are designed to be extremely resistant to corrosion, especially when exposed to strong reducing acids like sulphuric acid. These coils are perfect for chemical and marine applications because they have a low carbon content and are rich in nickel and molybdenum. Daksh guarantees that every product is meticulously tested and precisely cut to satisfy international standards because of its dedication to quality and performance. In the most demanding conditions, our SS 904L coils provide long-term dependability and economical performance.
The austenitic alloy known as stainless steel 904L is made up of 19–23% chromium, 23–28% nickel, 4-5 percent molybdenum, and trace amounts of carbon and copper (less than 0.02%). Tensile strength ranges from 490 to 710 MPa, yield strength is 220 MPa (min), and elongation is 35%. In addition to its exceptional formability and weldability, SS 904L has exceptional resistance to pitting, stress corrosion cracking, and crevice corrosion, particularly in harsh acidic environments. It is appropriate for demanding industrial and chemical applications due to its non-magnetic nature and high durability.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Coil Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm etc. |
| Coil Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm etc. |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Galvanized etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Yes, we offer custom sizes for Stainless Steel 904L Coils to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
| Grade | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
In industries where resistance to corrosion and harsh chemicals is essential, stainless steel 904L coils and slitting coils are widely used. Heat exchangers, gas scrubbing plants, pulp and paper bleaching systems, seawater handling systems and chemical process equipment are some of the main uses. Because of its non-contaminating qualities, it is also appropriate for the food processing and pharmaceutical industries. SS 904L is perfect for tanks, piping, and reactors because of its resistance to reducing acids like sulphuric and phosphoric acid. Because of its exceptional formability, specialised components can be easily fabricated into unique shapes, guaranteeing dependability under demanding operating conditions.
