Daksh Sheets and Plates is a trusted manufacturer and supplier of premium metal sheets and plates based in Delhi, India. Renowned for our commitment to quality and precision, we offer an extensive range of products designed to meet the demands of various industrial sectors. Our flagship offering, Titanium Gr5 Sheets and Plates, combines strength, corrosion resistance, and lightweight properties to deliver unmatched performance. Manufactured using cutting-edge technology and stringent quality controls, our Titanium Gr5 products are ideal for high-performance applications in aerospace, automotive, marine, and biomedical industries, where reliability and strength-to-weight ratio are critical.
Titanium Grade 5 (Gr5), also known as Ti-6Al-4V, consists of 90% titanium, 6% aluminum, and 4% vanadium. This alloy offers excellent mechanical properties, including a tensile strength of approximately 950 MPa and a yield strength around 880 MPa. It has an elongation of about 10-15% and a hardness of roughly 36 HRC. Gr5 provides a superior strength-to-weight ratio, is corrosion-resistant, and maintains mechanical stability at high temperatures. These properties make it the most commonly used titanium alloy in high-stress and high-performance applications across various demanding industries.
Titanium Sheets and Plates Specification : ASTM B265 / ASME SB265
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm

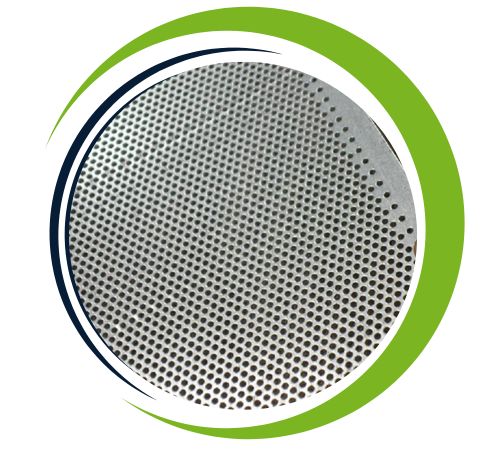

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

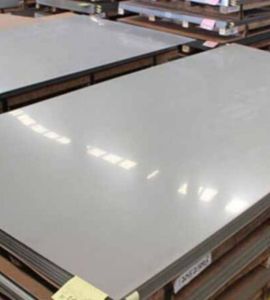

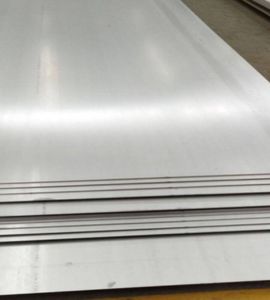

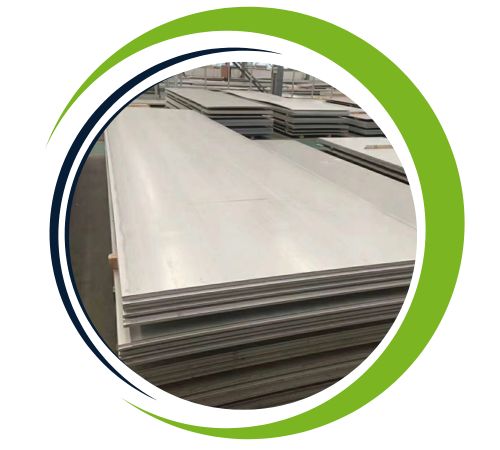

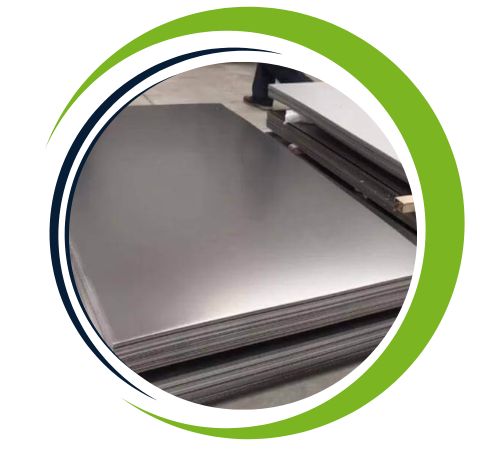

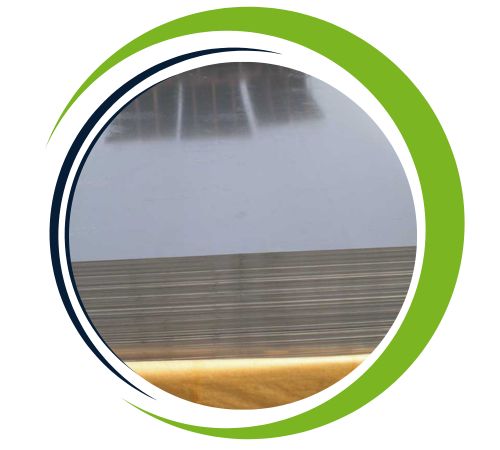

Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | Ti | C | Fe | O | Al | V |
| Titanium Gr 5 | 90 min | – | 0.25 max | 0.2 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 5 | 3.7165 | N56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 (Ti-6Al-4V) sheets and plates offer exceptional strength-to-weight ratio, making them ideal for aerospace, automotive, and marine applications. They are highly corrosion-resistant, including in seawater and aggressive chemicals, ensuring long-term durability. Their high-temperature resistance allows them to perform in extreme environments. Titanium Grade 5 also boasts excellent fatigue resistance, low thermal expansion, and biocompatibility, making it suitable for medical devices. Additionally, it is lightweight, offering enhanced performance without compromising structural integrity while being easily machinable and weldable for versatile applications.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Titanium Gr5 Sheets and Plates are extensively used in industries that demand high strength, low weight, and excellent corrosion resistance. In aerospace, they are ideal for turbine blades, structural components, and engine parts. The automotive industry utilizes Gr5 for performance exhausts, connecting rods, and suspension components. In the medical field, they are used for surgical implants and orthopedic devices due to their biocompatibility. The marine industry uses them for ship components and offshore structures. Additionally, they are employed in chemical processing plants, power generation equipment, and sports equipment where durability and high performance are essential.
