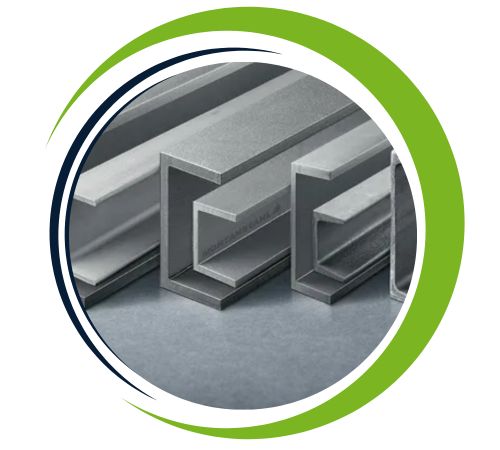

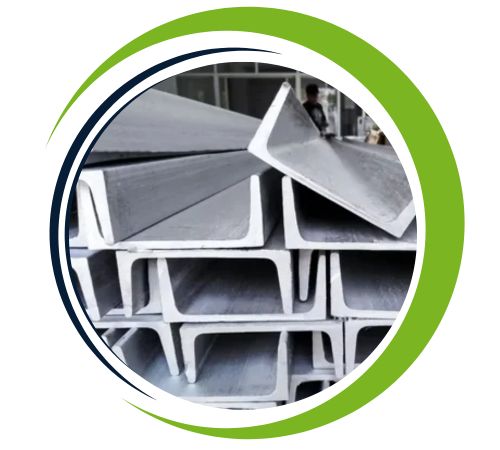

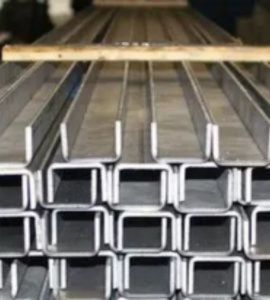

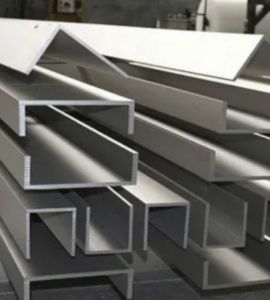

Based in Delhi, India, Daksh Sheets and Plates is a well-known producer and supplier of premium titanium goods, such as Titanium Grade 5 Channel. Titanium Grade 5 is a popular option for crucial applications in a variety of industries due to its remarkable strength, resistance to corrosion, and lightweight nature. Our products are made with accuracy and in accordance with global quality standards, guaranteeing their performance and longevity. Titanium Grade 5 Channels from Daksh Sheets and Plates combine cutting-edge technology with customer satisfaction to deliver dependable, high-performance solutions for challenging projects, whether for industrial, medical, or aerospace applications.
Titanium Grade 5 Channel is an alloy composed of 90% titanium, 6% aluminum, and 4% vanadium, offering an excellent balance of strength, toughness, and corrosion resistance. It is one of the most widely used titanium alloys, providing superior mechanical properties compared to pure titanium. The tensile strength of Grade 5 is approximately 900 MPa, with a yield strength of around 830 MPa. This alloy exhibits excellent fatigue resistance and high-temperature performance, with a maximum operating temperature of about 400°C. Additionally, it maintains good weldability and formability, making it ideal for a wide range of applications.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle

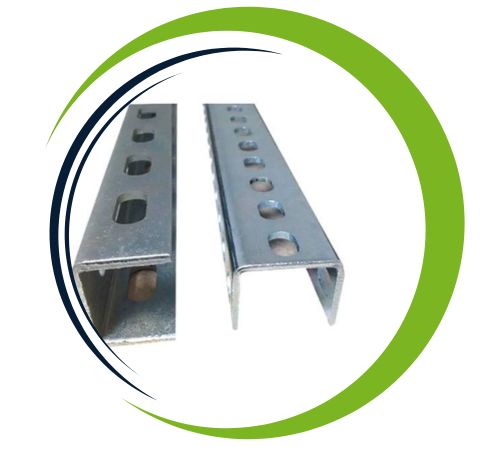

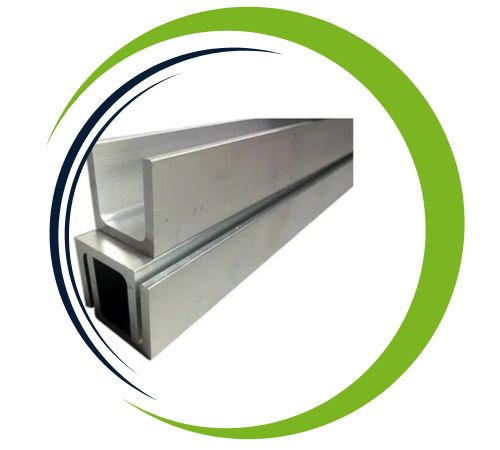

Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
| Element | C | V | N | Al | Ti | Fe | O |
| Titanium Gr.5 | – | 4 min | – | 6 min | 90 min | 0.25 max | 0.2 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 5 (Ti-6Al-4V) Channel offers numerous advantages, making it ideal for high-performance applications. Its exceptional strength-to-weight ratio ensures lightweight yet durable structures, while its superior corrosion resistance makes it ideal for harsh environments, including marine and chemical industries. The alloy also exhibits excellent fatigue strength and creep resistance, ensuring long-lasting performance under stress. Titanium Gr 5 is biocompatible, making it suitable for medical implants. Additionally, it maintains stability at high temperatures, offering versatile and reliable solutions in aerospace, automotive, and other demanding fields. Its weldability further enhances its applications.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Angle Bar (kilogram/meter) | Titanium Gr 5 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Ti Alloy Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Grade 5 Channel to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 5 Channel is extensively used in industries requiring high strength and durability. In aerospace, it’s used for structural components such as wing spars, engine components, and landing gear. In the medical industry, Titanium Grade 5 Channels are employed in surgical implants, orthopedic devices, and prosthetics due to their biocompatibility and corrosion resistance. The automotive and marine industries also utilize Grade 5 titanium for high-performance parts and components exposed to harsh environments. Its strength-to-weight ratio makes it ideal for high-performance applications in chemical processing, power plants, and other critical industrial sectors where reliability is essential.
