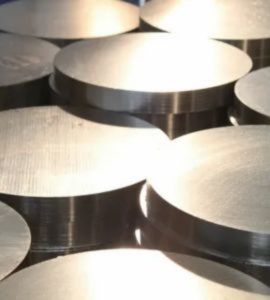

Based in Delhi, India, Daksh Sheets and Plates is a reputable brand in the production and distribution of high-end titanium goods, such as the high-performance Titanium Grade 5 Circle. Titanium Grade 5 Circle is considered to be one of the strongest titanium alloys on the market because of its exceptional strength, resilience to corrosion, and durability. At Daksh, we make sure that every Titanium Grade 5 Circle satisfies international standards by using state-of-the-art technology and strict quality control procedures. Our dedication to accuracy and client satisfaction guarantees that we provide goods that are perfect for demanding markets like the industrial, medical, and aerospace sectors.
90% titanium, 6% aluminium, and 4% vanadium make up Titanium Grade 5 Circle, an alloy that provides an exceptional blend of strength, heat tolerance, and corrosion resistance. One of the strongest titanium alloys on the market, it has a yield strength of 830 MPa and a tensile strength of about 900 MPa. It performs well at temperatures as high as 400°C and shows outstanding fatigue resistance. Titanium Grade 5 is appropriate for intricate designs and applications where strength and lightweight qualities are crucial because of its exceptional weldability and formability.
| Standard | ASTM B265, ASME SB265 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

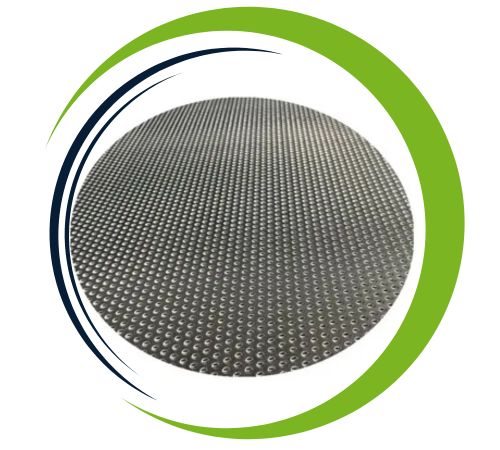

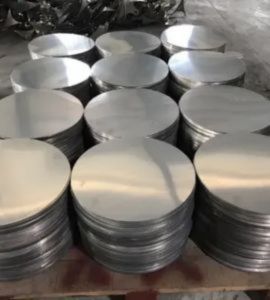

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | R56400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Titanium Gr.5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Daksh Sheets and Plates based in Hyderabad , India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 5 Circle offers numerous advantages, making it a preferred choice in various industries. Its exceptional strength-to-weight ratio ensures high durability while remaining lightweight, ideal for aerospace and automotive applications. The alloy exhibits excellent corrosion resistance, even in extreme environments, including marine and chemical industries. It also offers outstanding fatigue and creep resistance, enhancing the longevity and performance of components. Additionally, Titanium Grade 5 is biocompatible, making it suitable for medical implants. Its excellent weldability, machinability, and formability add to its versatility across multiple sectors.
Yes, we offer custom sizes for Titanium Grade 5 Circle to meet specific project needs. Our team at Daksh Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@dakshsheetsandplates.co.in
Titanium Grade 5 Circles are widely used in aerospace, medical, and industrial applications, where strength, lightweight properties, and corrosion resistance are essential. In the aerospace industry, they are utilized for critical components such as turbine blades, compressor discs, and airframe structures. In the medical field, these circles are used for surgical implants, joint replacements, and dental prosthetics due to their biocompatibility. Additionally, Titanium Grade 5 Circles find applications in high-performance automotive parts, chemical processing equipment, and marine components. Their versatility and outstanding mechanical properties make them ideal for applications in demanding, high-stress environments.
